| Brand Name : | DASON |
| Model Number : | 1240L-37 |
| Certification : | ISO9001 |
| Price : | 2~3USD |
| Payment Terms : | T/T |
| Supply Ability : | 300000 |
| Delivery Time : | 30T |

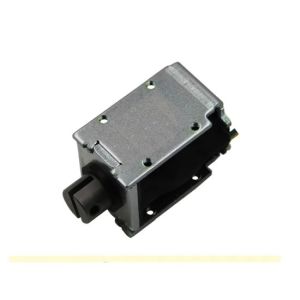

Good Quality DC 12V 11W Pull Push Linear Actuator Solenoid
Brand: DSN solenoid
Product Name: embroidery electromechanical magnet
Product model: DSN1240h-1
Product voltage: DC24V current: 0.8A
Product specification: length: 26mm, diameter: φ 13mm, M10 * 1 coarse tooth (for domestic
machine)
Length: 40mm, diameter: φ 12mm, M9 * 0.75 fine tooth (for Tiandao
machine)
Product features: the electromagnet is powered on instantly, so the
power consumption is saved. The structure of this electromagnet is
simple, the use cost is low, and the installation is convenient.
Service life: more than 500000 times under rated working conditions
| P/N: | DSN-1240L-37 |
| TEST | |
| Enviroment Temperature Range: | -20ºC~45ºC |
| Relative Humidity: | 5%~60%RH |
| Rated Voltage: | DC12V |
| Wattage: | 10.8W |
| Resistance: | DC12V,R=13.3Ω±10% |
| ELECTRIC | |
| Working Voltage:: | DC12V±10% |
| Force (Potence): | pull force at 5mm≥200g |
| Insulation Resistance: | DC500V,≥50MΩ |
| Duty cycle: | ON:OFF=0.05S:0.08S, max on time is 10s, ED40% |
| Life cycle: | min.200,000 cycles |
| roduct model | Voltage | Electric current | stroke | Initial force | Single power on time |
| DSN1240-1 | DC12V | 0.8A | 3.5MM | 0.2KG | 5s DC12V Can be used for a long time |
| DSN1240 | DC24V | 0.8A | 2.8MM | 0.25KG | 5s DC12V Can be used for a long time |
|
|
