Customization of soft magnetic tripping solenoid for mechanical automatic equipment of opening and closing electromagnet

Product Parameter
Application	High-Speed Chip Mounter
Model	T-1912S-12A09

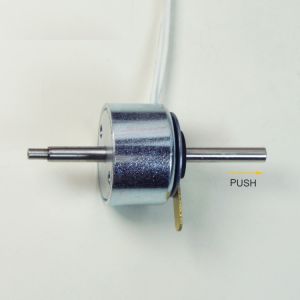

Type	Tubular Push Pull Solenoid
Size	φ19 * 11.6mm
Valtage	DC12V
Power	16W
Current	1.33A
Resistance	9Ω
Stroke	2mm
Force	≥200gf
Life	≥500,000 times
Working cycle	0.02S ON, 0.1S OFF
Response time	≤50ms
OEM / ODM	Accept

characteristic:

1. The iron shell is made of solid material, anti fatigue and stable performance

2. The sealant is flush with the binding surface to reduce impact

3. The winding wires are arranged in order, and the resistance error between coils is between 0.5 ohm

4. Coil heating is controlled within 60 degrees to maintain balanced magnetic force

5. After special processing technology, the remanence is small.

instructions:

1. The absorbed substance is a metal containing iron;

2. The contact surface of the object to be absorbed, the electromagnet suction surface;

3. The smoother the suction surface, the better the suction;

4. The thicker the absorbed material, the better the suction;

5. The suction of the suction cup electromagnet is very low, and the suction decreases by 20% when the unit is 0.2mm;

6. The shorter the single power on time is, the longer the life of electromagnet is at the end of heating month;

7. During equipment maintenance and troubleshooting, the electromagnet power supply should be turned off to avoid burning off;

8. The methods to deal with the accumulation of residual magnetism are as follows: first, demagnetize the hand-held demagnetizer; second, reduce the remanence by changing the positive and negative poles.

Weight		Packaging Details		Shipment Details
N.W.(KG)	G.W.(KG)	Product Size(mm)	Carton Box Size(mm)	20GP	40GP	40HQ
0.3	0.4	27*30*53	350*310*180	/	/	/

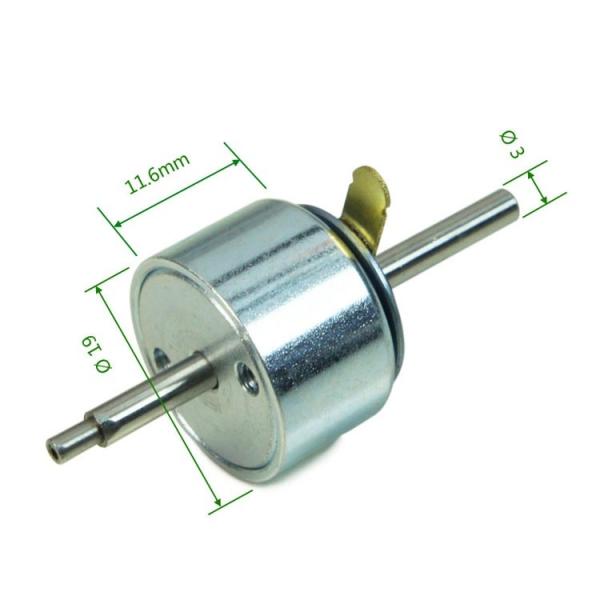

Product dimension drawing
